Egg-shaped drain

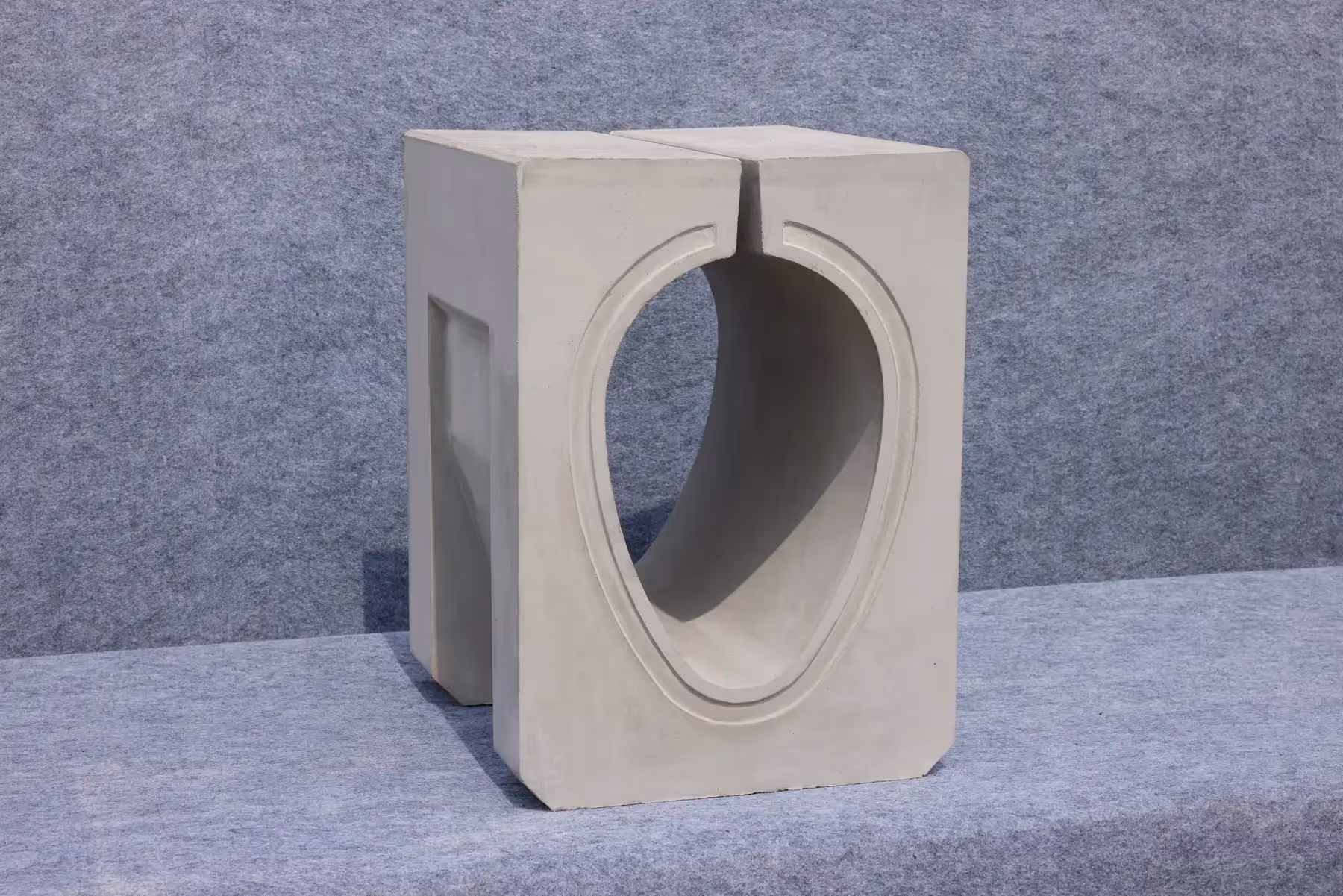

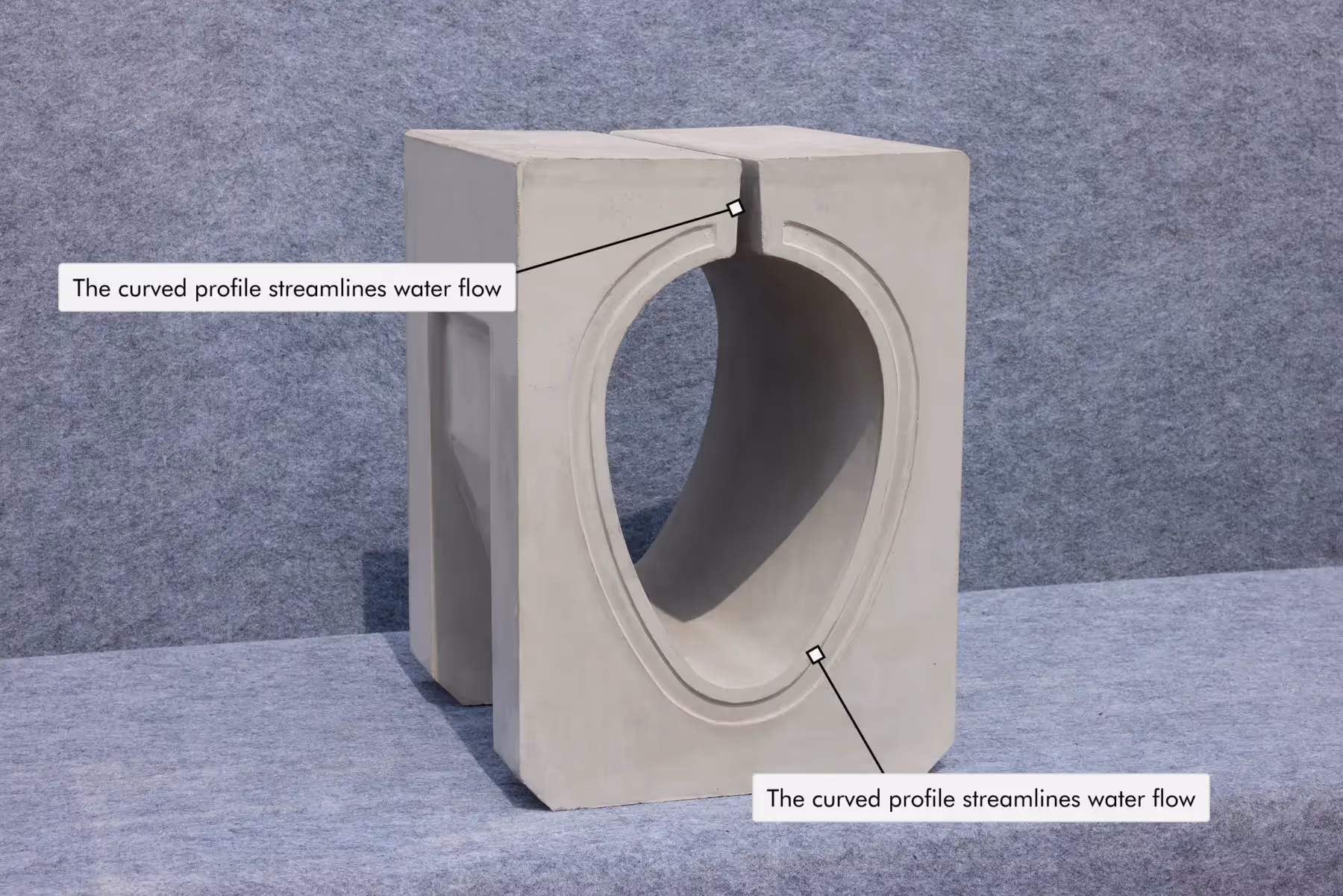

With its sharp oval curve, the egg-shaped precast concrete drain ensures smooth water collection and conveyance.
DOWNLOAD BROCHURE
DOWNLOAD BROCHURE
No items found.
Specifications

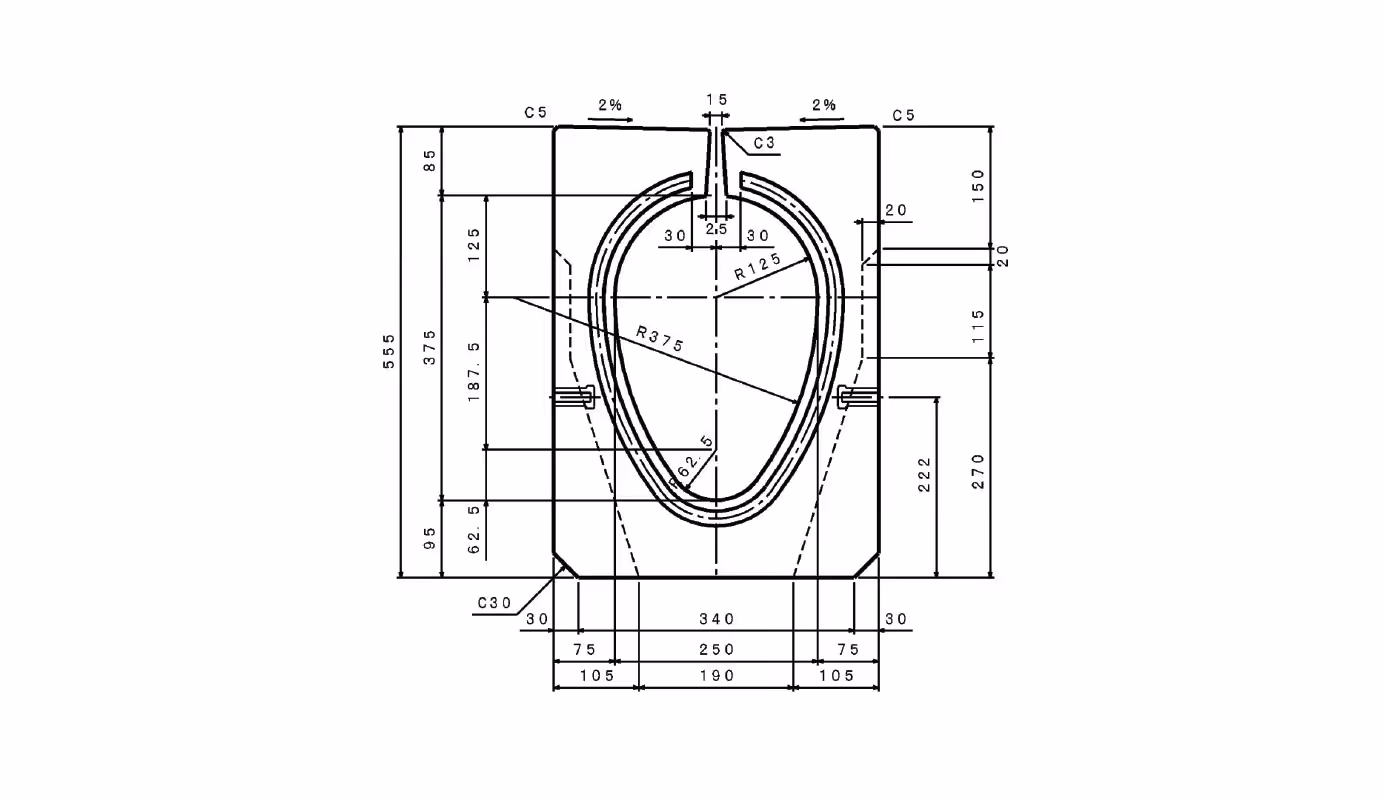

Egg-shaped precast concrete drains are available in our standard sizes and can also be customised for projects.
The egg-shaped drain is made with M40-grade precast concrete and reinforced with 550D steel rebar.
Highlights
01
Purpose built for efficient drainage
02
Excellent debris control
03
Narrow inlet for more safety
04
High load-bearing capacity
Applications
01
Roadsides and kerbs
02
Pedestrian walkways and parks
03
Industrial yards and loading docks
04
Parking areas and ramps
FAQs
How should the egg-shaped drain be installed?

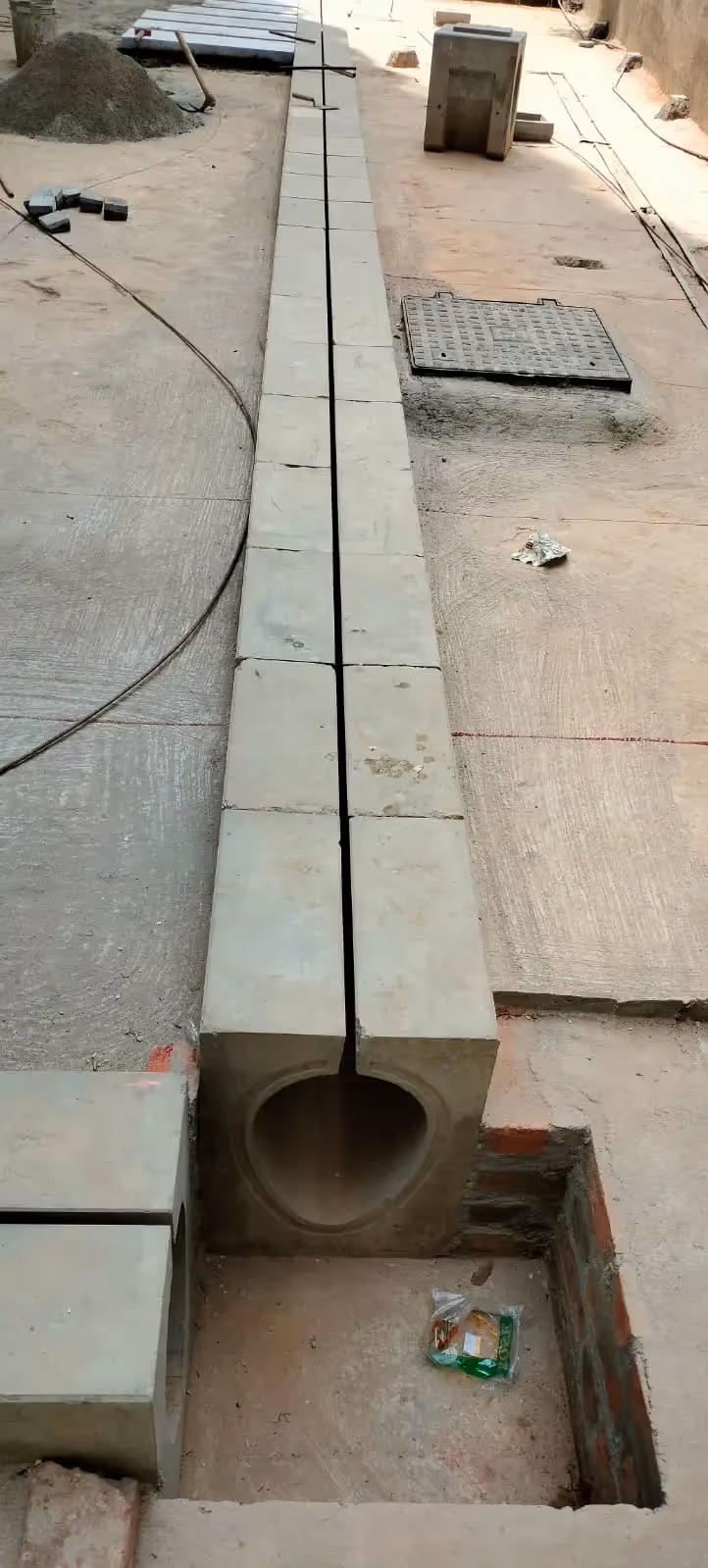

The drains should be installed flush with the road, i.e. in line with the road’s surface.
How can the drain be cleaned?
The slit on the drain’s surface allows for simple tools, which can be assembled on site or bought, to be inserted for the removal of any debris.
Are egg-shaped concrete drains load bearing?
While the drains are made with high-strength concrete and steel bars, their load-bearing capacity will vary according to their size. Smaller sizes are ideal for low-traffic zones like walkways while heavy-traffic areas like highways will require larger dimensions.
When should I choose an egg-shaped drain?
Egg-shaped precast concrete drains are recommended for areas where sediment-control is a priority. Typically, these are places where sand and debris accumulate quickly, such as parking lots, highways and urban streets.
